Ferret Leak Locator M2
User Guide and Specifications




Screenshot 2021-02-15 at 04.30.39.png
M2 User Guide

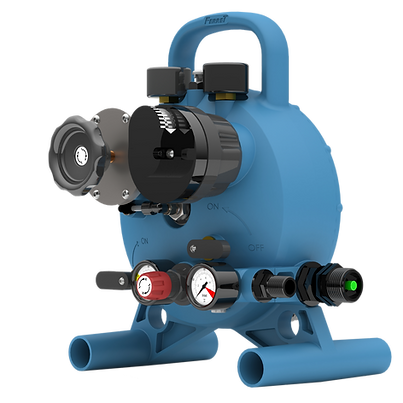

Ferret Small Bore Leak Location System

Model: FSB-SYS-02-A



General:

Dimensions (mm): Height 390mm, Length 370mm, Width 245mm

Weight (Dry): 17.2Kg

Body Material: Aluminium LM25TE



System Performance:

Pipe size range: 10mm ID to 45mm ID

Survey Distance: 50m from point of insertion

Flow Transmitter Range: 0.03 to 25 litres/minute

Sonde Output: 33 KHz



Working Pressure:

Max. Inlet Pressure: 10 Bar

Max. Outlet Pressure: 5 Bar

Min. Working Pressure: 0.5 Bar

Max. Ferret Head Pressure: 8 Bar



Electronic Control Unit:

Battery: 9.6V, 4.0 AH rechargeable NiMH2 cell

Charger: Input range 90 to 264 VAC
